Water Heater Solutions for Every Home
At Quigley Smart, we understand the importance of having reliable water heaters in your home. Serving Southern Wisconsin and the Northern Illinois Stateline area, our family-owned business has been delivering personalized HVAC and plumbing services for over 75 years. Whether you need repairs, maintenance, or a brand-new installation, we've got you covered. Our offerings include:
- Water heater repairs and maintenance
- New installations of water heaters
- Tankless high efficiency water heaters
- Heat pump water heaters
- Standard water heaters
- Energy-efficient systems
- Natural draft water heaters
- Condensing water heaters
Contact us today to discuss your water heater needs.
Request Quote
Our Water Heaters Line-Up

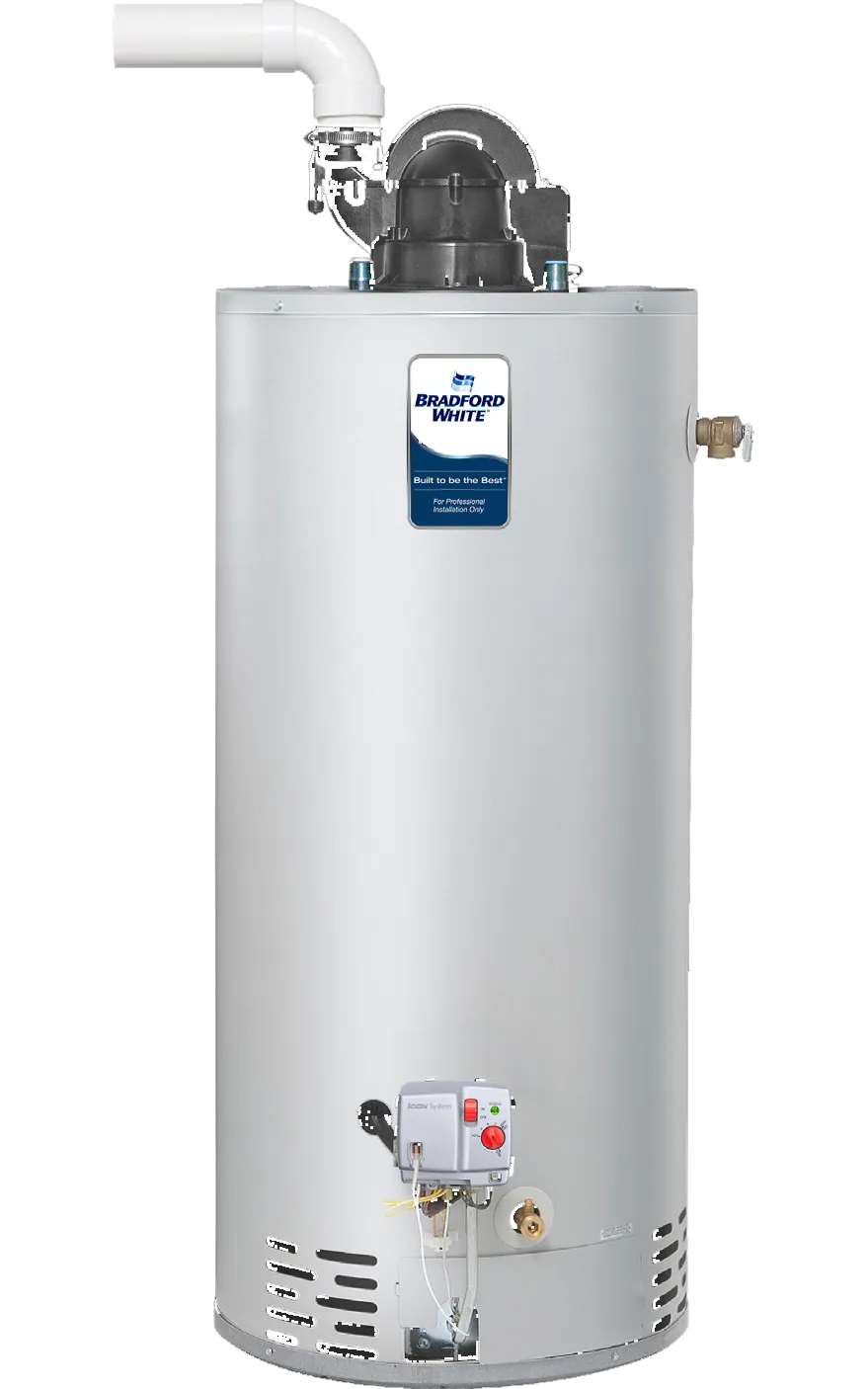

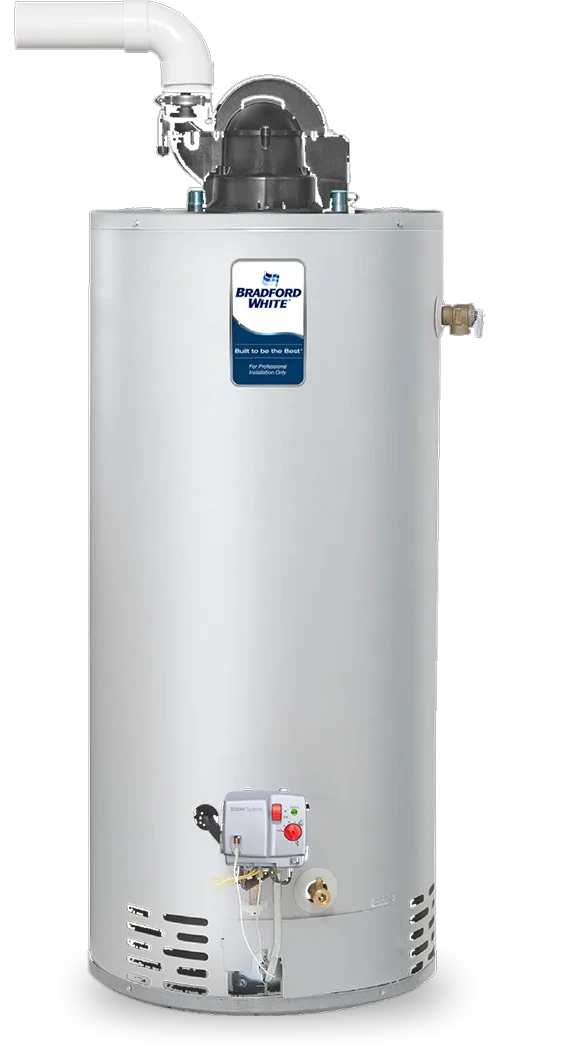

TTW Power Vent
Residential Gas Water Heater
Features
- Defender Safety System®*: Designed to be the safest & most reliable flammable vapor ignition resistant system in the industry with a proven track record since 2003. Featuring an advanced ScreenLok® technology flame arrestor design, flammable vapor sensor, sight window, and is designed to be maintenance-free.
- Bradford White ICON System®: Intelligent gas control that eliminates constant burning pilot, saving gas during standby periods (120 VAC). Proprietary algorithms provide a tighter temperature differential and consistent water temperature levels up to 160°F (70°C). The LED light indicates the pilot function or operation status/service required.
- Vitraglas® Lining with Microban®: An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water, and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold, and mildew on the surface of the tank lining.
- Hydrojet® Total Performance System: Sediment-reducing device that also increases the first-hour delivery of hot water while minimizing temperature build-up in the tank.
Additional Details
- AquaVENT MAX™ from Fasco™: The industry's quietest blower motor with a lower profile and robust electrical connection. Includes 10-foot (3m) power cord (120 VAC).
- Horizontal and Vertical Venting: Designed for installations unsuitable for atmospheric units. Exhaust gases are vented under positive pressure through the roof or wall using PVC, ABS, CPVC, or Polypropylene.
- High Altitude Ready: Water Heaters designed and certified for installations up to 10,100 feet (3078m) out of the box. No conversion kit required.
- Insulation System: Non-CFC foam covers the tank, reducing heat loss, energy consumption, and improving efficiency and jacket rigidity.
- Water Connections:
NPT factory-installed dielectric waterway with heat traps.
– ¾" (19mm) NPT Side Connections - (RG2PV50H6N, RG1PV55H6N, and RG2PV75H6N only). - Factory-Installed Heat Traps: Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation.
- Protective Anode Rod: Provides added protection against corrosion for long-term, trouble-free service (RG1PV55H6N has 2).
- T&P Relief Valve: Installed.
- Thermostatic Mixing Valve (ASSE Approved): (RG1PV55H6N only).
- Low Restrictive Brass Drain Valve: Durable tamper-proof design.
- NOx Emissions: Less than 40 ng/J.
*Excluding RG1PV55H6N & RG2PV75H6N

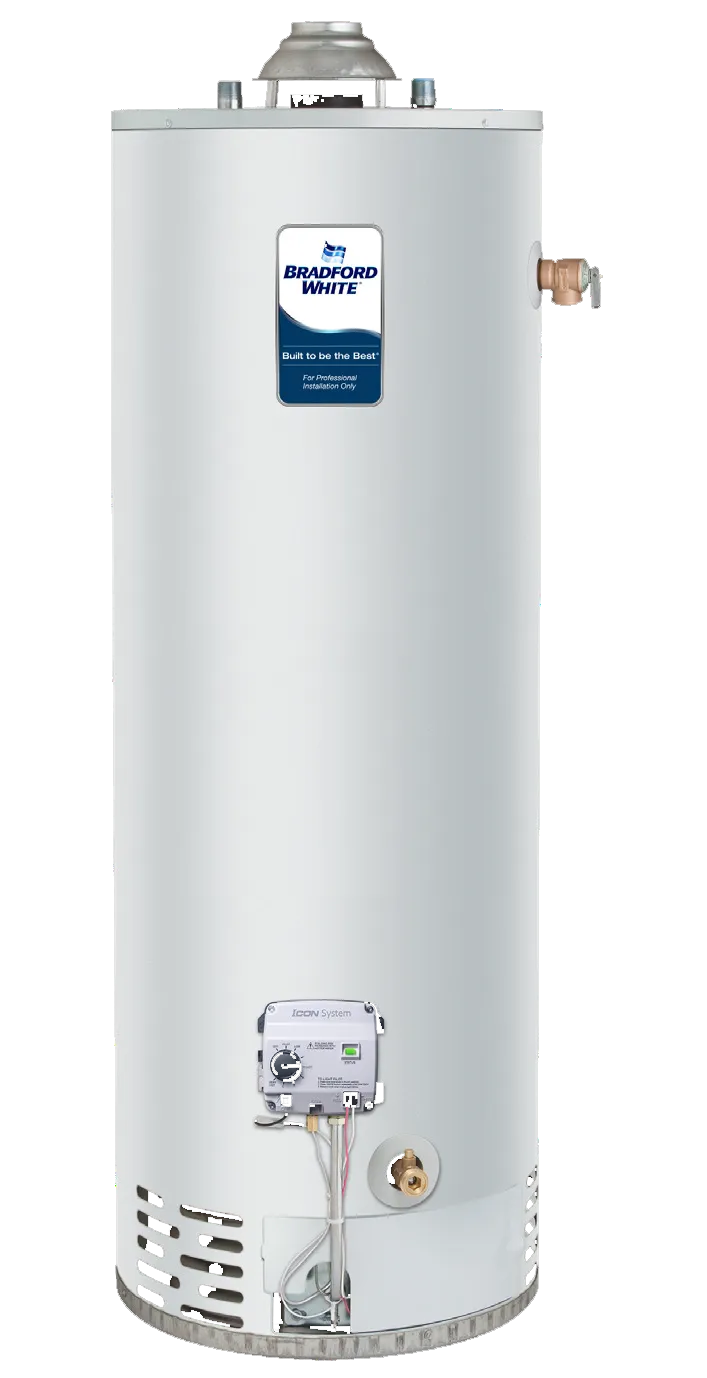

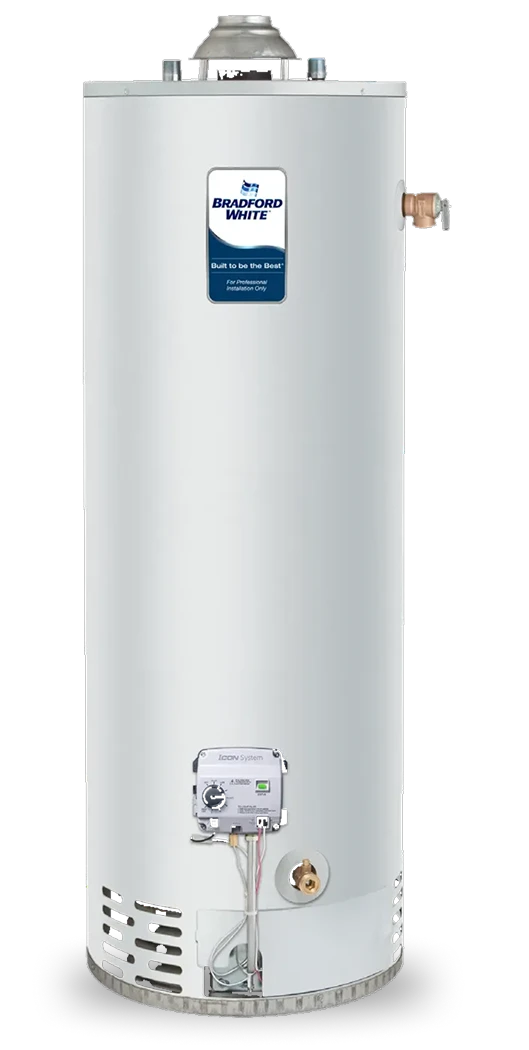

Atmospheric Vent
Residential Gas Water Heater
Features
- Defender Safety System®: Designed to be the safest & most reliable flammable vapor ignition resistant system in the industry with a proven track record since 2003. Featuring an advanced ScreenLok® technology flame arrestor design, resettable thermal switch, sight window, and designed to be maintenance-free.
- Bradford White ICON System®*: Intelligent gas control with no need for external electricity. Proprietary algorithms provide a tighter temperature differential and consistent water temperature levels up to 160°F (71°C). LED light indicates operation status/service required.
- Vitraglas® Lining with Microban®: An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water, and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold, and mildew on the surface of the tank lining.
- Hydrojet® Total Performance System:
Sediment-reducing device that also increases the first-hour rating of hot water while minimizing temperature build-up in the tank.
Additional Details
- 3x4 “Snap Lock” Draft Diverter: Allows 3" (76mm) or 4" (102mm) vent connections with inputs of 40,000 BTU/Hr. or less. Over 40,000 BTU/Hr. has the 4" (102mm) “Snap Lock” Draft Diverter.
- Insulation System: Non-CFC foam covers the tank, reducing heat loss, energy consumption, and improving efficiency and jacket rigidity.
- Pedestal Base: Rugged and durable base allows easy transport and positioning while providing corrosion-resistant contact with the floor.
- Water Connections: NPT factory-installed dielectric waterway with heat traps.
- Protective Anode Rod:
Provides added protection against corrosion for long-term,
trouble-free service. - T&P Relief Valve: Installed.
- Low Restrictive Brass Drain Valve: Durable tamper-proof design.
- NOx Emissions: Less than 40 ng/J.
- Small Diameter Models Available: For limited space installations.
*May vary by region

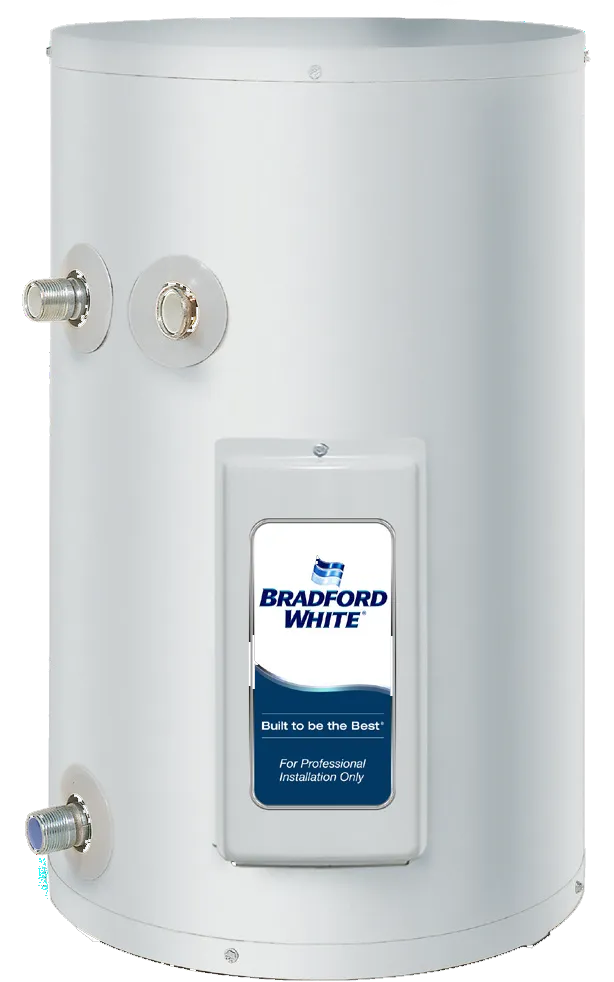

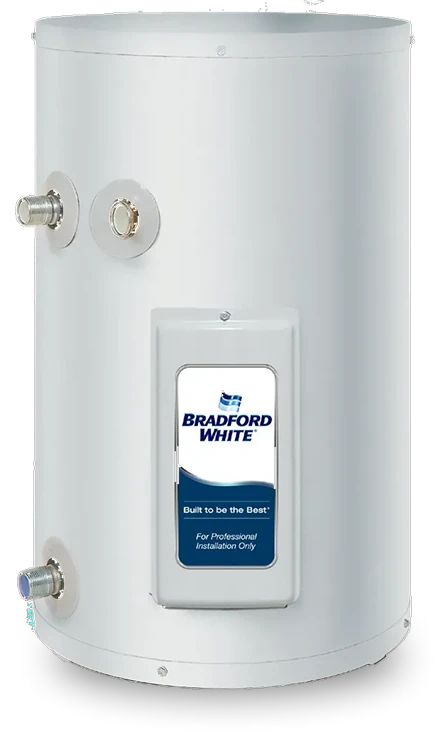

Utility Electric
Residential Water Heater
Features
- Vitraglas® Lining with Microban®:
An exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water, and with Microban® antimicrobial product protection to help prevent the growth of bacteria, mold, and mildew on the surface of the tank lining.
Additional Details
- Fully Automatic Controls: Fast-acting surface-mount thermostat with high-limit energy cut-off (manual reset) for safety.
- Direct Heat Transfer with Immersed Elements: Transfers heat directly and efficiently to the water. Screw-in style.
- Insulation System: Non-CFC foam covers the tank, reducing heat loss, energy consumption, and improving efficiency and jacket rigidity.
- Water Connections: NPT factory-installed dielectric waterway with heat traps. Located on the side for easier installation (Fittings packaged separately inside carton).
- Factory-Installed Heat Traps: Incorporates a flexible disk that reduces heat loss in piping and prevents noise.
- Protective Anode Rod:
Provides added protection against corrosion for long-term,
trouble-free service. - Voltages Available: 120V, 208V, 240V, 277V, 480V.
- Single Phase Operation Only.
- T&P Relief Valve: Installed.
- Housing and Urban Development: These water heaters are designed in accordance with H.U.D. and are approved for installation in a manufactured home (mobile home).
